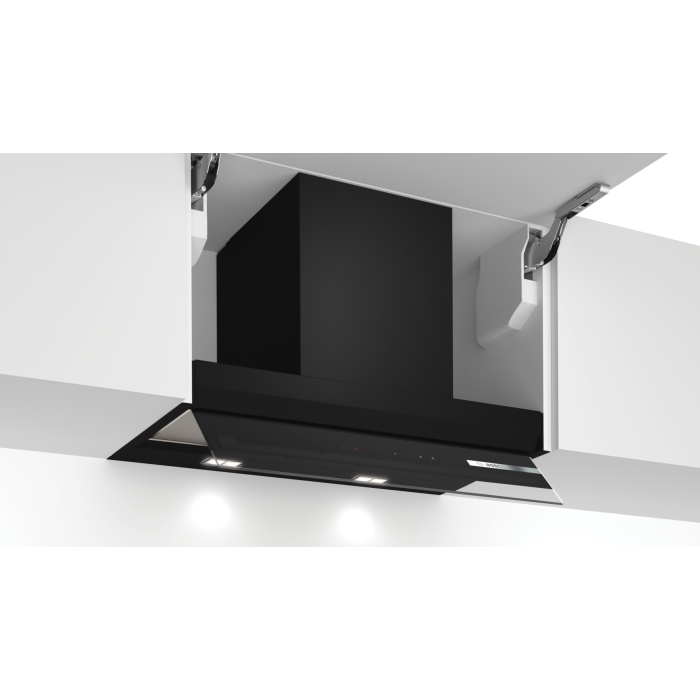

DBB67AM60B, Integrated Design Hood
£639.99
- ColourBlack
- Depth298 mm
- Installation TypeBuilt-in
Variant
- 60 cm wide
- Installation: Cupboard 60 cm
- Suitable for ducted or recirculating operation
- For recirculated extraction various recirculation kits are available as optional accessories.
- Flush-fitted installation for a seamless integration in wall cupboards.
- Space efficient compact design for extra storage possibilities on the hood, up to max. 10 kg storage weight per side.
- Glass panel with touch control for an easy operation and enhanced vapor capture.
- Extraction and lighting are automatically turned on and off by opening and closing the glass panel.
- Lighting can also be turned on and off when the glass panel is closed by quick hand touch on control panel.
- Includes mats for hood storage areas, protectioning against scratches and to help prevent items moving in this space.
- Electronic control via TouchControl
- 3 power levels & intensive setting
- Softlight dimmer function
- 2 x 2 W LED lights
- Colour Temperature: 3500 K
- Light Intensity: 451 lux
- Automatic intensive revert
- Automatic intensive revert (6mins)
- Steel filter cover
- 2 removable metal grease filter cassettes
- Easy to clean smooth surfaces and materials.
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use460m³/h
- Intensive749 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
- Max. normal use:63dB(A) re 1 pW
- Intensive:73 dB(A) re 1 pW
- Noise max. Normal Level: Noise, max. speed in normal us: 63 dB dB*
- With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
- Extraction rate in recirculation mode: Max. normal use:451m³/h
- Intensive:652m³/h
- Noise level in recirculation mode: Max. normal use:67dB(A) re 1 pW
- Intensive:74 dB(A) re 1 pW
- Installation system: IDH comfort installation
- Suitable for installation in bottomless wall cupboards.
- Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm.
- For installation in higher wall cupboards chimney extensions are available as optional accessories.
- Chimney extensions are compatible with the available recirculation kits.
- Dimensions (HxWxD): 340 x 597 x 298 mm
- Built-in dimensions (HxWxD): 340 x 560 x 300 mm
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Back-pressure flap: Yes
- Electrical cable length 1.3 m
- Please reference the built-in dimensions provided in the installation drawings
- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Average Energy Consumption: 62.7 kWh/year*
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Power rating: 256 W
| Manufacturer | Bosch |
|---|---|
| GTIN | 4242005297948 |
| Model Number | DBB67AM60B |
| Price | £639.99 |
| Key feature 1 | <strong>Silent: maximum extractor performance with minimal noise.</strong> |
| Key feature 2 | <strong>Expanded storage space: the hood can hold up to 10 kg on each side.</strong> |
| Depth | 298 mm |
| Width | 597 mm |
| Installation Type | Built-in |
| USP information 3 | <strong>Glass panel with integrated TouchSelect control: an automatic recognition of the glass panel position enables automatical operation of power level and light.</strong> |
| USP information 4 | <strong>Easy to clean: thanks to the well thought-out design, such as smooth surfaces, the hood is easy to clean.</strong> |
| Net weight | 9.4 kg |
| Gross weight | 15.0 kg |
| Energy efficiency class | B |
| Noise level | 63 dB re 1 pW |
| Total annual energy consumption | 62.7 kWh/year |
| Depth of the packed product | 674 mm |
| Width of the packed product | 654 mm |
| Height of the packed product | 574 mm |
| Construction type | Built-in |
| Electrical connection rating | 256 W |
| Length of electrical supply cord | 130.0 cm |
| Number of lights | 2 |
| Diameter of air outlet | 120 / 150 mm |
| Number of speed settings; boost option availability | 3-stages + intensive setting |
| USP information 1 | <strong>Silent: maximum extractor performance with minimal noise.</strong> |
| USP information 2 | <strong>Expanded storage space: the hood can hold up to 10 kg on each side.</strong> |
| USP text indicating a statement of the main highlight or highlights of the product. | Perfectly integrated design hood for flush installation and optimal usage of space inside your cupboard. |
| Boost position output recirculating | 652 m³/h |
| Boost position air extraction | 749 m³/h |
| Noise level with boost position | 73 dB re 1 pW |
| Colour body | Black |
| Colour | Black |
